Annie with Water-Cooling

(1 customer review)

From: $593.14

Everything you need right out of the box to start annealing right away!



Product Quantity

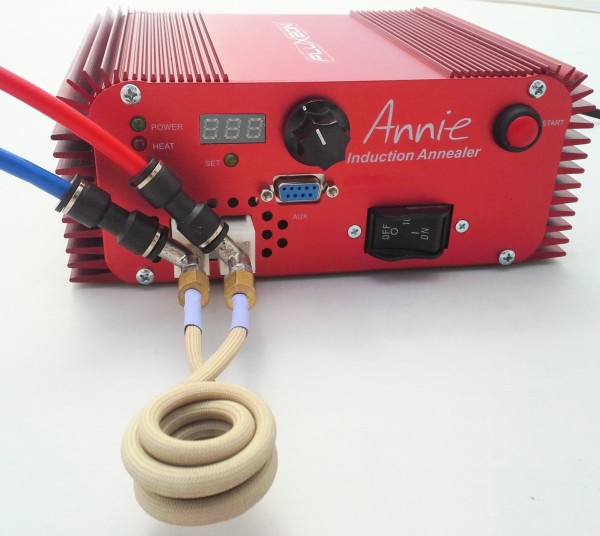

Annie Induction Annealer

Introducing the Annie Induction Annealer!

This heater was specifically designed to anneal brass rifle cartridges in preparation for reloading. With over 1200W of induction heating capacity, most cartridges will anneal in about 3 seconds.



current shipping queue is 3 weeks

Download the latest user manual HERE

Water Recirculator/ Heat Exchanger

The Water-Cooled Helical Coil is by far the most efficient coil option for the Annie.  But.... setting up for the water supply can be a little tricky.  Not everyone has a faucet nearby, and not many are willing to go to the trouble of cobbling together their own pump and reservoir system.  If you want to just hit the ground running, here is your solution!

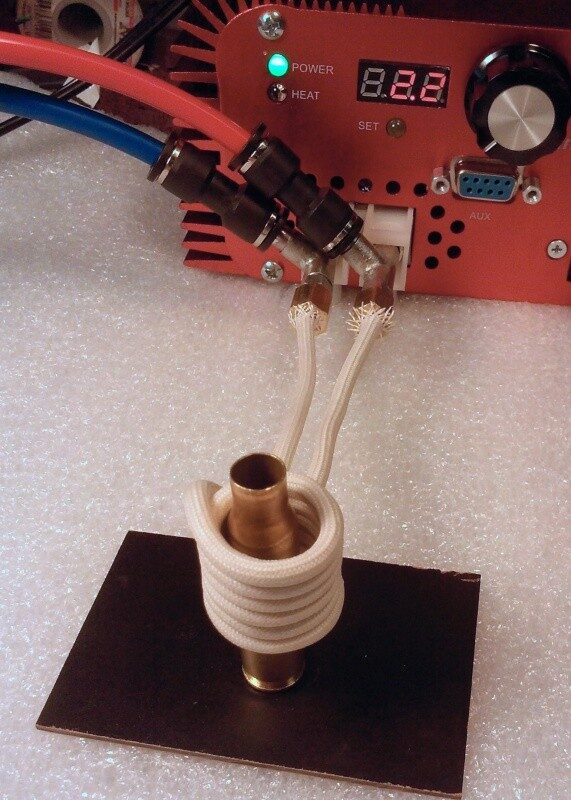

Annie Water-Cooled Helical Coil

Annie Water-Cooled Helical Coil is the most efficient coil geometry, and hence will give you the fastest anneal times. Almost twice as fast as the Flux Concentrator coil!

Tempilaq 750F – optional

Tempilaq temperature indicating fluid. Just brush it on, let dry, and you're ready to heat! When the cartridge gets to 750F, the chalky coating will turn translucent. 2fl. oz.

1

Fluxeon Universal Foot Switch – optional

The Fluxeon Universal Foot Switch controls all our Heaters and timers.
The foot switch plugs in to the front panel 3.5mm jack.  That's all you need to do.

Made of die-cast Aluminum, the switch is sturdy and designed to last.  The bottom has a rubber non-slip pad to keep it from moving around.  We use a heavy-duty spring, so that the weight of your foot will not accidentally start a cycle.

Free up your hands and move those cartridges through faster!

1

SKU: BD-1 Category:

Description

The helical coil provides the fastest and most uniform heating, and there is zero concern about overheating due to the water-cooling.  Anneal as fast as you can move your hands!

This bundle Includes:

-120V Annie Induction Annealer
-The Water Recirculator, Corrosion Inhibitor and power connector
-Water-Cooled Helical Coil and plastic water-tubing

What coil diameter do you want?
Chose the size that most closely fits your particular cartridge.  90% of the cartridges will call for the .625″ ID coil– just measure it where it necks down.  anything under .575″ will work.  For larger cartridges like the 50BMG, select the .875″ ID coil.  but don’t get the larger coil if you are also intending to use it on brass that will fit in the smaller one.  it will work, but coupling is much lower so it will take a lot longer.

All coils are interchangeable, so you can add another size coil from the ‘Coils” page.

What power connector should I select?
We offer the “Front Panel Connector” or the “Wall Adapter”.  Most users will want to get the FPC, which connects to the front panel DB-9 port and uses the internal 12V power supply to run the recirculator.  It will turn on and off with the main Annie unit.

but if you intend to use any of the advanced feature pins on the DB-9, then select the wall adapter.

Should I get the 120V Annie or the 230V?
three is no difference between the two, except the 230V Annie requires us to use more expensive higher voltage components. If you are in a country that has 220-255V, then select the 230V version.

Lifetime Warranty applies!



Additional information

Weight .1 lbs
Dimensions 9 × 9 × 9 in

Annie Induction Annealer

Weight 7 lbs
Dimensions 7 × 8 × 3 in
PLEASE SELECT Primary Voltage:

230V 50/60Hz, 120V 50/60Hz

Water Recirculator/ Heat Exchanger

Weight 2 lbs
Dimensions 12 × 8 × 18 in
Power Cable PLEASE SELECT

Annie Front Panel Connector, Wall Adapter

Annie Water-Cooled Helical Coil

Weight 1 lbs
Dimensions 12 × 10 × 2 in
PLEASE SELECT Water-Cooled I.D.

0.625 inches, 0.875 Inches

Tempilaq 750F

Weight 1 lbs
Dimensions 6 × 4 × 3 in

Fluxeon Universal Foot Switch

Weight 1 lbs
Dimensions 8 × 5 × 3 in

1 review for Annie with Water-Cooling

  1. Thomas Marlar

    Looked For An Annealer That Was Very Consistent And Quick , Found It In The Annie Annealer , Has Plenty Of Power And If You Use The Water Cooling System There Is No Waiting Between Cases To Be Annealed , Absolutely Awesome , Best Spent Money I Can Say , Used Flame Before But If You Want Your Brass At Factory Spec’s With No Change In Temps Between Cases This Is The Unit For You , Checked With Tempilaq And Does Not Burn Like Flame Just Turns From Flat To Gloss At 750 F Range , Very Precise Annealing And Very Quick Also 1.1 Seconds For .223 And 1.9 For .308 Win Did Hundreds Of Cases On The First Use And Was Very Impressed With This Machine , Just Buy It And You Won’t Be Disappointed Guaranteed !
